Part Number(s) : PCAP (Worldwide) -CT170A
Enclosure Color: Black
Touch Technology & Capacity: PCAP (Projected Capacitive) - 10 Touch
Touch Interface: PCAP - USB 2.0
Diagonal Size: 17'' diagonal, Active matrix TFT LCD (LED)
On Screen Display:
1. Accessible through switches on the unit's keypad (OSD Control).
2.Controls: Menu, Up, Down, Select, Power
3.Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
4.Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
5.Lockouts: OSD, Power
Aspect Ratio： 4：3
Active Area (mm)：337.92mm * 270.34mm
Resolution: 1280*1024
Viewing Angle:  Horizontal: 178° total ； Vertical: 178° total
Number of Colors：16.7 million
Brightness (typical)：260 nits
Response Time-total (typical): 3.5 msec
Contrast Ratio:500:1

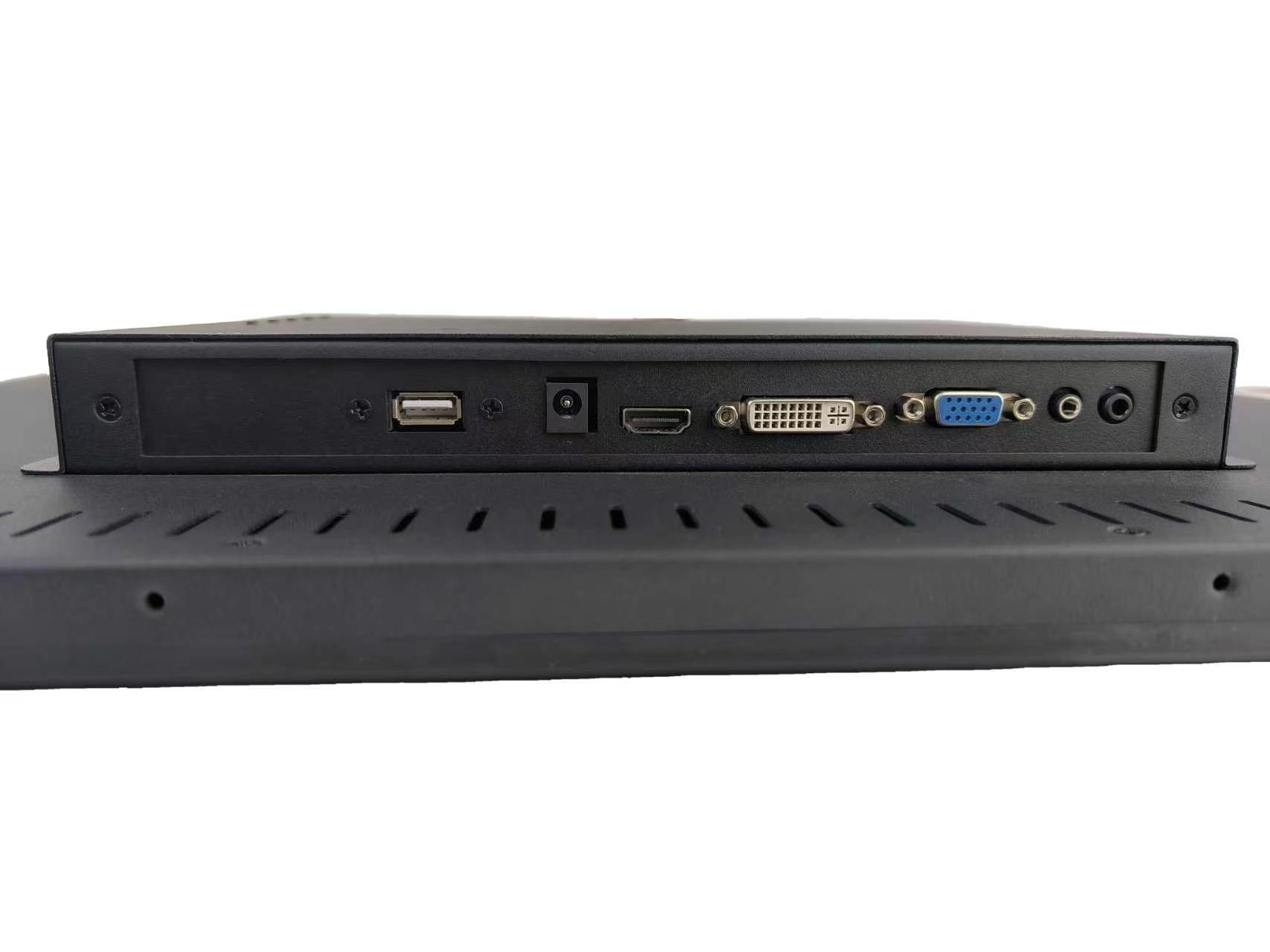

Input Video Format: VGA,HDMI,DVI,DP
Input Video Frequency： Horizontal: 30 - 80 KHz ； Vertical: 60 - 75 Hz
Power Supply：Power cord and power brick (sold together)
Input Voltage：12VDC +/- 5%
Power Consumption (Typical)：＜25W
Dimensions：380.26mm * 312.26mm
Shipping Box Dimensions：590mm * 450m * 150mm
Weight (Unpackaged)：4.9 Kg
Weight (Packaged)：5.4Kg
Operating Temperature：0°C to 50°C
Storage Temperature：-20°C to 60°C
Humidity: Operating: 20% to 80%, Storage: 10% to 90%
MTBF:50,000 hours demonstrated
Warranty:1-year
approvals: CE,RoHs,Fcc
Mounting Options:open frame brackets ; 75 mm and 100 mm VESA mount (Total Modeles)
What's in the Box：HDMI cable, VGA cable, OSD remote(optional), Touch USB cable, Adapter,Power Cord
