Part Number(s) : PCAP (Worldwide) -CT215A

Enclosure Color: Black

Touch Technology & Capacity: PCAP (Projected Capacitive) - 10 Touch

Touch Interface: PCAP - USB 2.0

Diagonal Size: 21.5'' diagonal, Active matrix TFT LCD (LED)

On Screen Display:

1. Accessible through switches on the unit's keypad (OSD Control).

2.Controls: Menu, Up, Down, Select, Power

3.Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

4.Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

5.Lockouts: OSD, Power

Aspect Ratio： 16：9

Active Area (mm)：477.6mm * 269.1mm

Resolution: 1920*1080

Viewing Angle:  Horizontal: 178° total ； Vertical: 178° total

Number of Colors：16.7 million

Brightness (typical)：350 nits

Response Time-total (typical): 3.5 msec

Contrast Ratio:500:1

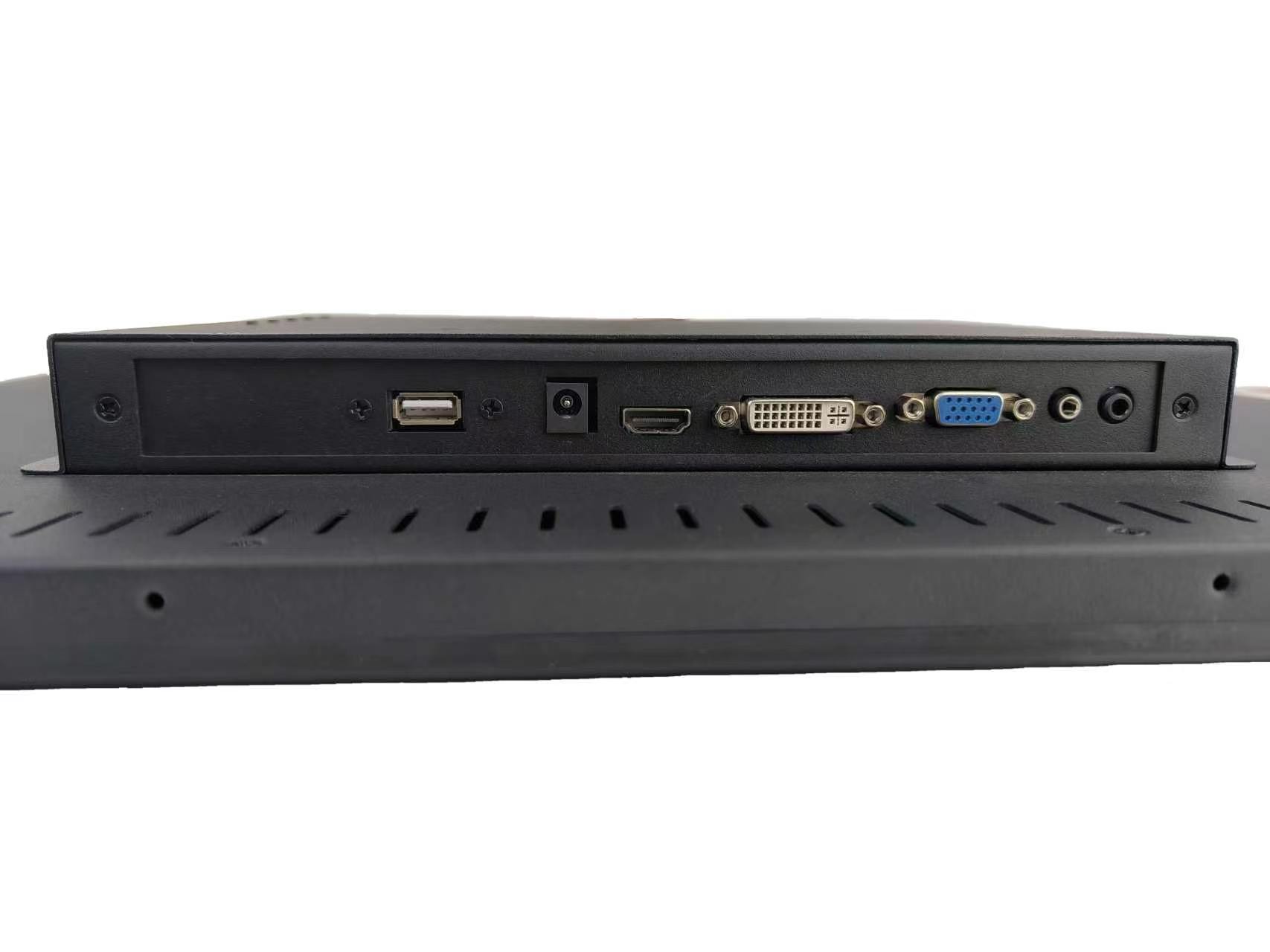

Input Video Format: VGA,HDMI,DVI,DP

Input Video Frequency： Horizontal: 30 - 80 KHz ； Vertical: 60 - 75 Hz

Power Supply：Power cord and power brick (sold together)

Input Voltage：12VDC +/- 5%

Power Consumption (Typical)：＜25W

Dimensions：527.7mm * 314.5mm *47.5mm

Shipping Box Dimensions：615mm * 410m * 145mm

Weight (Unpackaged)：6 Kg

Weight (Packaged)：7Kg

Operating Temperature：0°C to 50°C

Storage Temperature：-20°C to 60°C

Humidity: Operating: 20% to 80%, Storage: 10% to 90%

MTBF:50,000 hours demonstrated

Warranty:1-year

approvals: CE,RoHs,Fcc

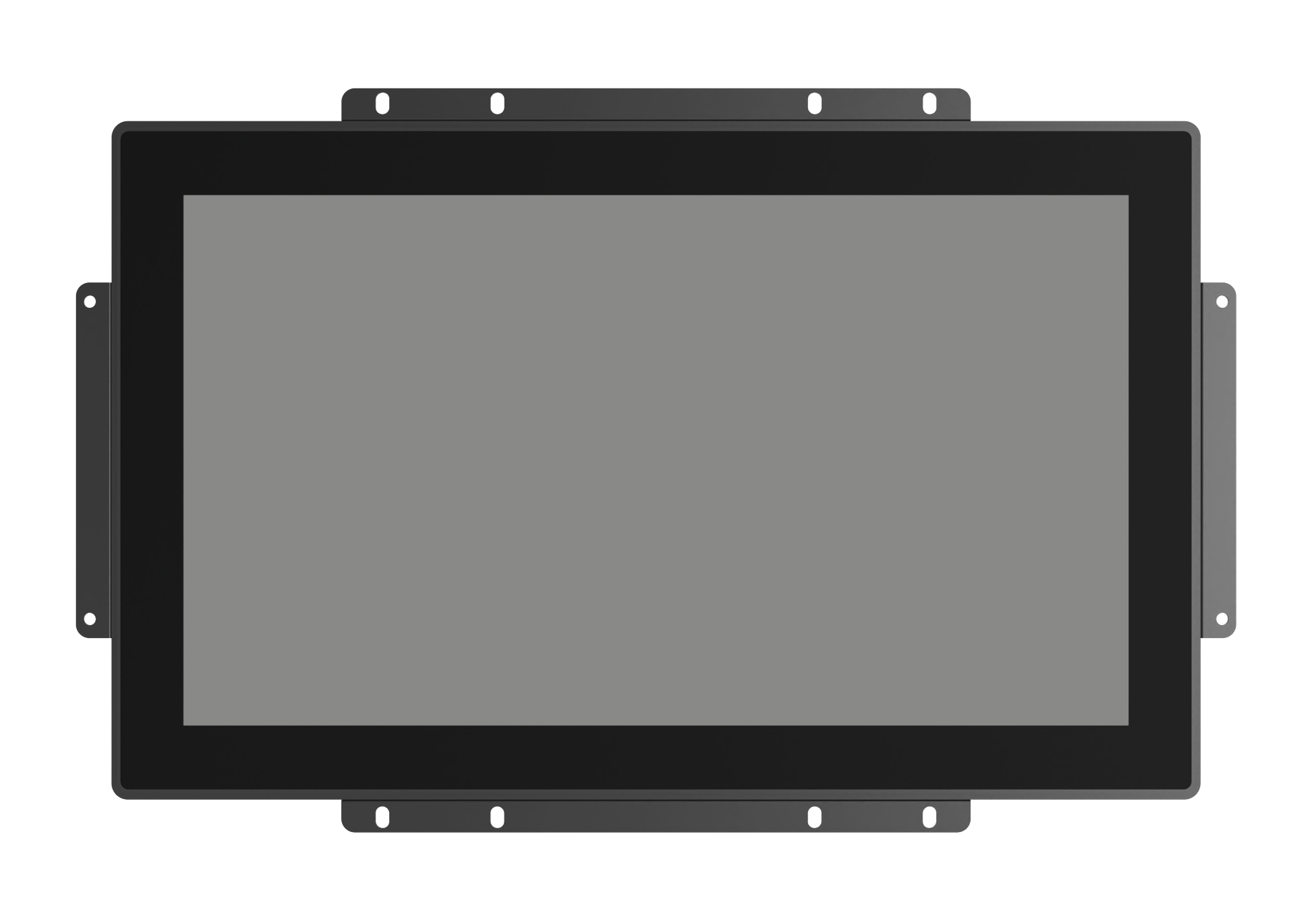

Mounting Options:open frame brackets ; 75 mm and 100 mm VESA mount (Total Modeles)

What's in the Box：HDMI cable, VGA cable, OSD remote(optional), Touch USB cable, Adapter,Power Cord
