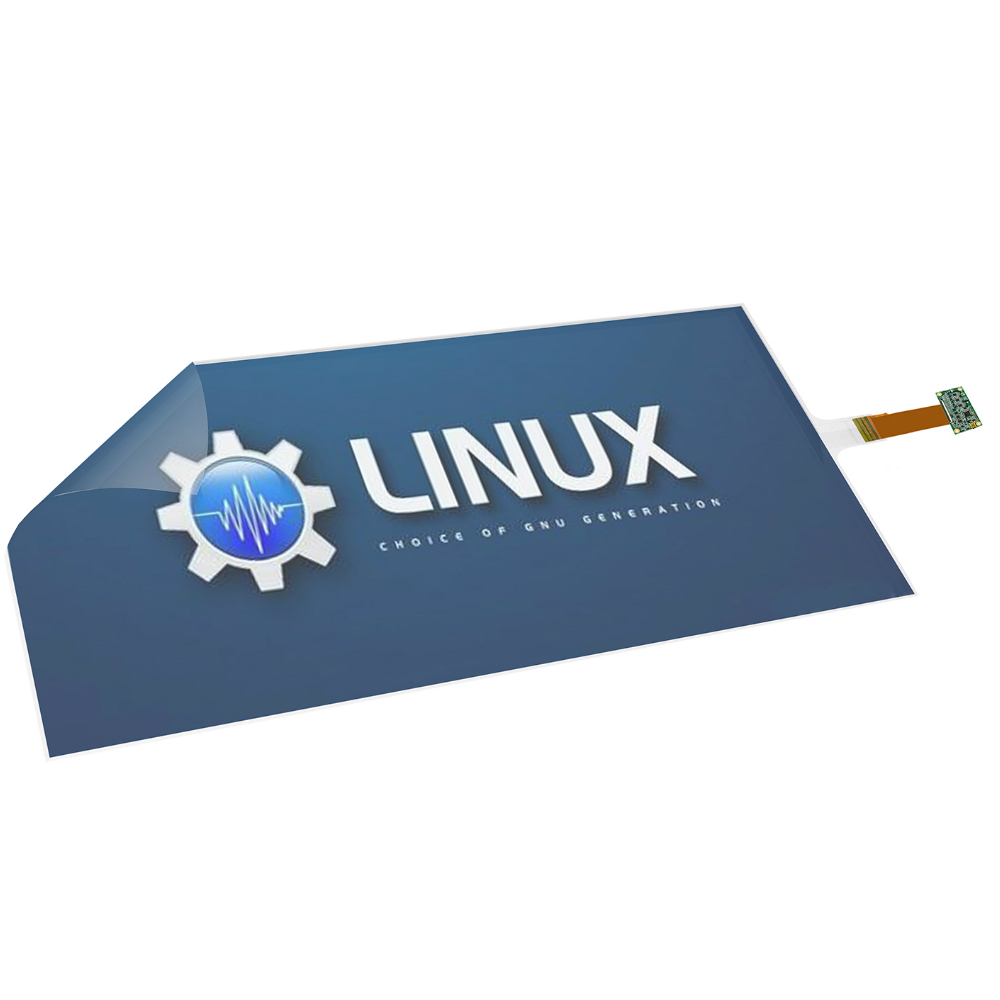

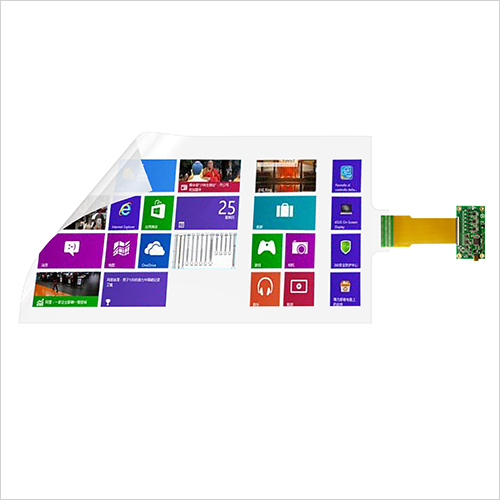

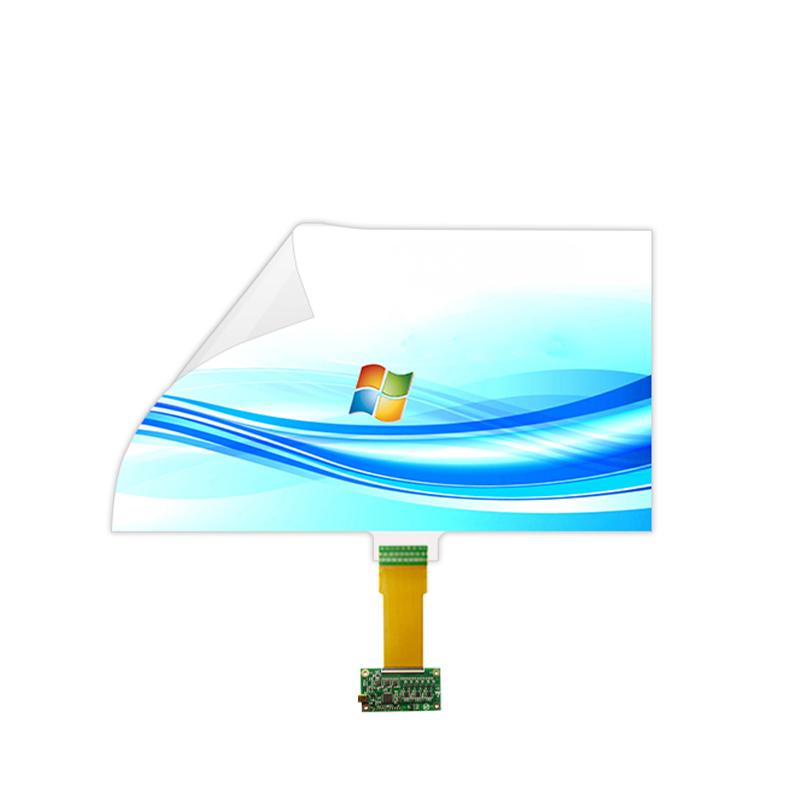

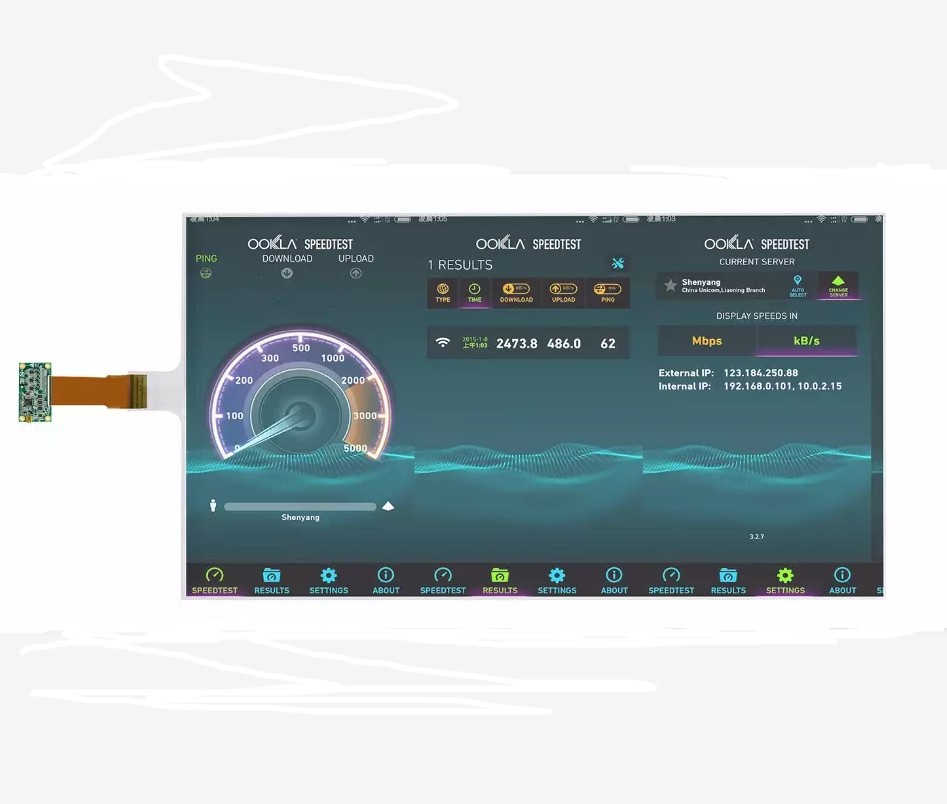

22-Inch Transparent 16:9 Multi Interactive Capacitive Touch Screen Foil Film

22-Inch Transparent 16:9 Multi Interactive Capacitive Touch Screen Foil Film

In Stock
2 Year Warranty
Free Shipping

ProjectsandParameters：TOUCHSENSORtouchfilmtechnicalspecifications Technicalprinciples：Ultra-finewiremeshmatrixreplacesITOlayer ProductSeries：shortsideflick Touchpoints：122040t

Key Features

ProjectsandParameters：TOUCHSENSORtouchfilmtechnicalspecifications Technicalprinciples：Ultra-finewiremeshmatrixreplacesITOlayer ProductSeries：shortsideflick Touchpoints：122040t
Get Quote Back
CE/FCC/RoHS Certified
24/7 Technical Support
30-Day Returns

Product Specifications

Projects and Parameters：TOUCH SENSOR touch film technical specifications
Technical principles：Ultra-fine wire mesh matrix replaces ITO layer
Product Series：short side flick
Touch points：12 20 40 touch points
Size range: 10.1 - 300 inch
Touch bias:≤2mm
Number of sensors:2784
Report rate:80-120point/ms
Energy consumption:0.5W-2W
Drive type:No need to drive
Arm Reject：support
Support customization：Irregular size, irregular flick
Film thickness：≤100um
Transmittance：More than 88%
Supply voltage：5V USB
transfer method：USB2.0, USB3.0;I2C
Transmission distance：≤50m (plus USB signal amplifier, etc.)
safe distance：2mm (referring to the distance between the LCD screen and the film)
Working humidity：0% to 99%
Storage humidity：20% to 50%
storage temperature：20℃ to 40℃
ambient temperature：-20℃ to +80℃
ambient light:Anti-strong light exposure from all angles
Touch support:Click, drag, zoom in, zoom out,rotate, write
glass thickness:≤10mm
Calibration method:The system comes with calibration and software correction
Program type:Andriod,Linux,Windows7/8/10 (32-bit/64-bit)
program level:Standard HID-USB device
Technical certification:EN 55022:2010/AC:2011,EN 55024:2010 IEC62321:2008
